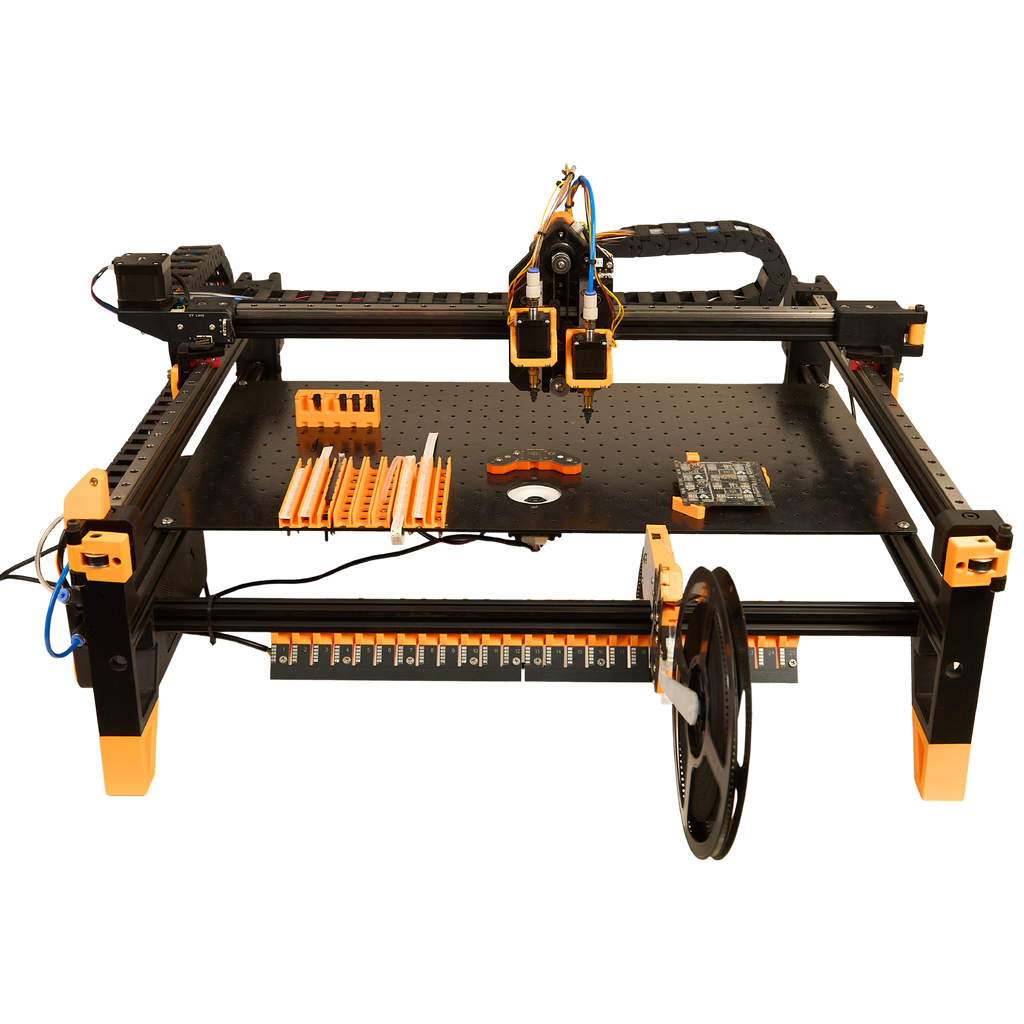

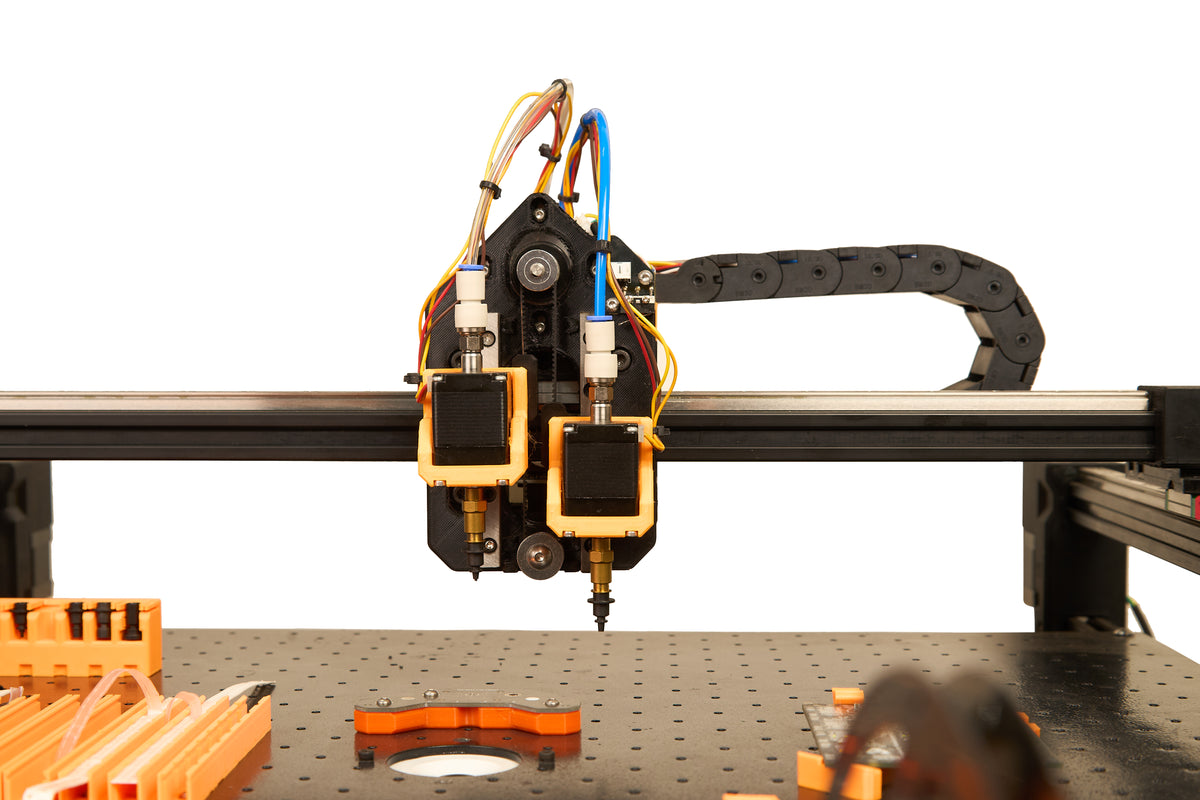

PlaceStation

Rs. 200,000.00

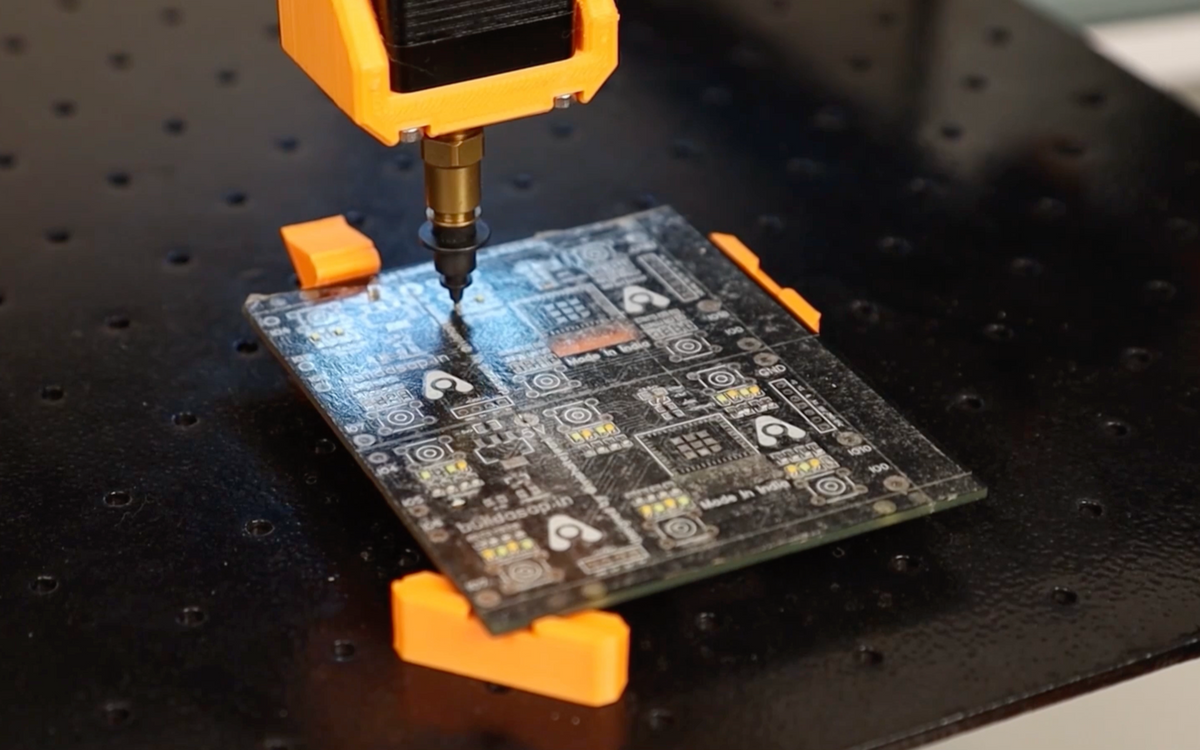

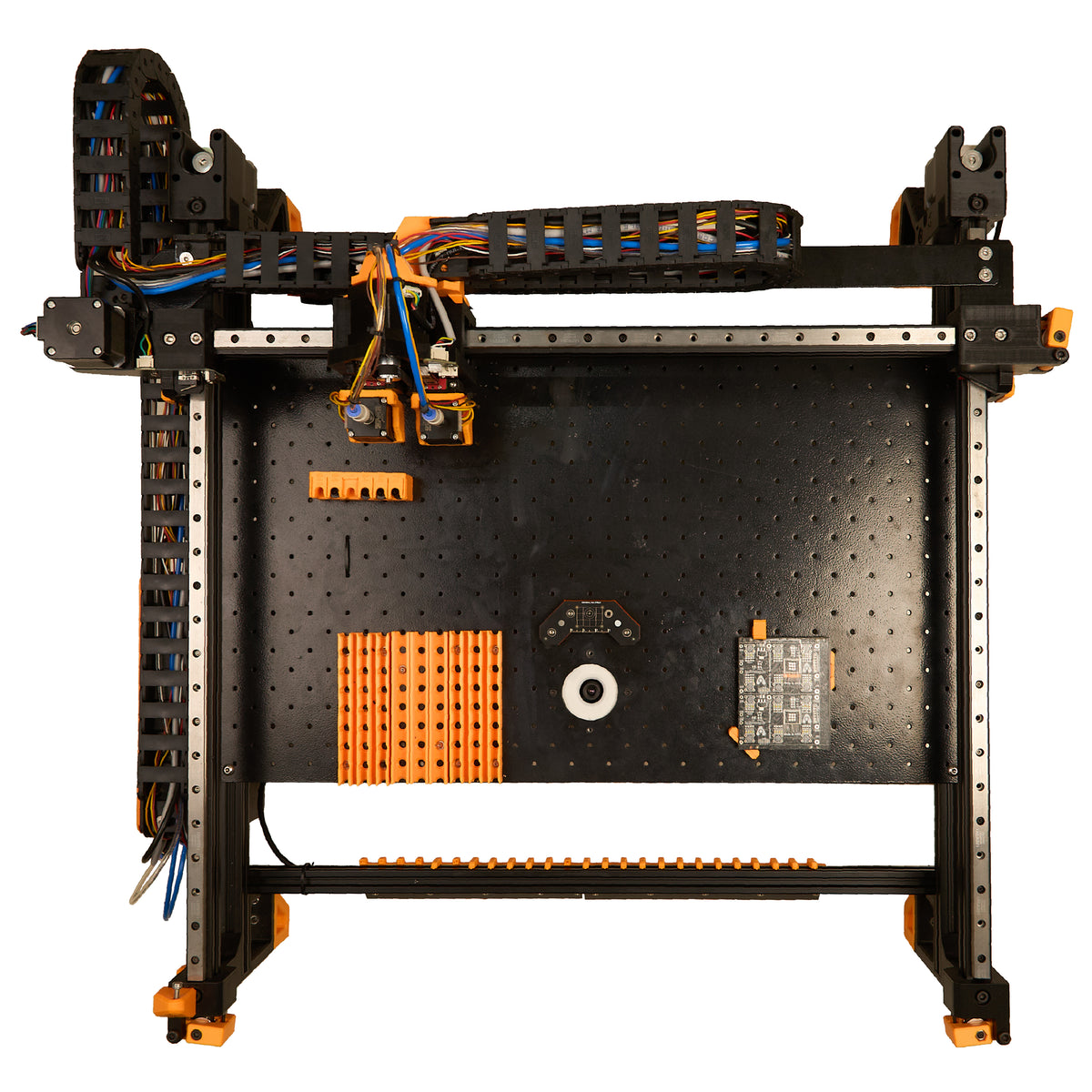

PlaceStation is a high-precision pick-and-place machine designed for modern electronics labs. It rapidly positions even the smallest components onto solder-pasted boards with micrometer accuracy, streamlining prototyping and small-batch production.

Speed Up Your Prototyping

Automatically assemble a batch in-house, instead of waiting weeks and paying thousands for an assembly shop to get you time-critical prototypes. Keep your team moving.

Accurate

The PlaceStation uses dual HD cameras with custom optics, providing high resolution and a wide field of view. This ensures precise calibration for both small and large components.

Reliable

Integrated high resolution pressure sensors keep track of pneumatic line vacuum levels, allowing the PlaceStation to immediately detect a mispick and take corrective action. Redundant part detection systems ensure that your components are picked and mounted correctly.

Fast

Fully outfitted with linear rails on every axis, high current stepper drivers, and integrated current monitoring, the PlaceStation is capable of high speed population, keeping your R&D program moving as fast as you do.

Autonomous

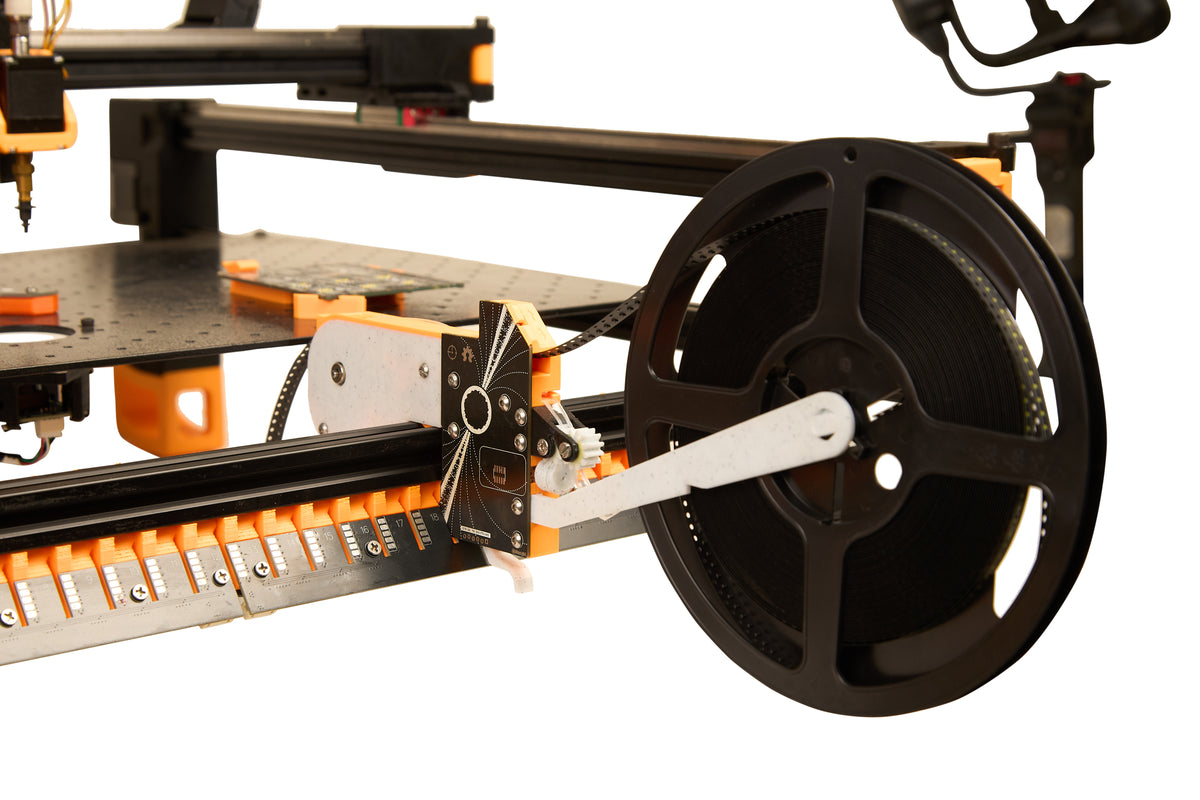

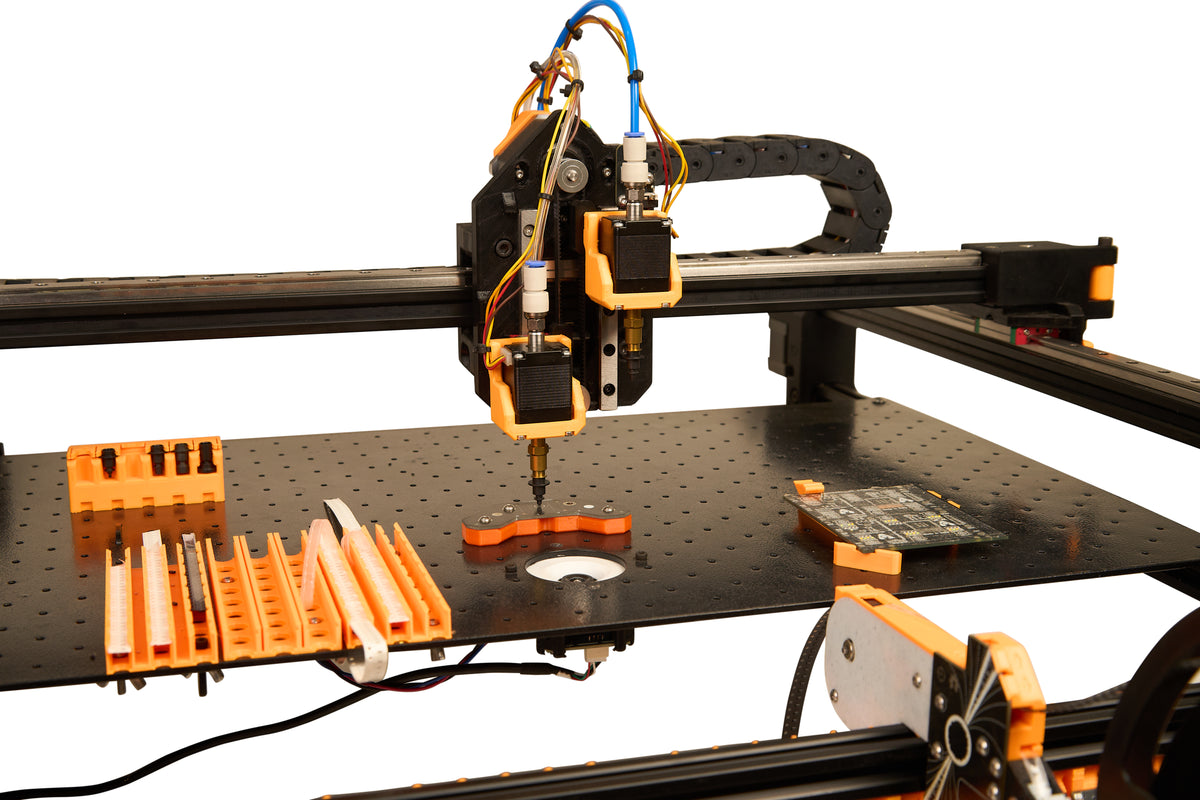

The PlaceStation has a robust and stable feeder system, capable of consistent and repeatable delivery of components with high accuracy. Once loaded with parts, they will feed for thousands of parts uninterrupted.

Versatile

The Staging Plate system facilitates the PlaceStation to be configured for incredibly large PCBs, allowing for large panels maximizing throughput, or unique applications that require large geometry.

Keep your Production flowing...

Metric	Dual Staging Plate	Triple Staging Plate
Maximum PCB Size	120mm × 390mm or 240mm × 150mm (2x)	120mm × 390mm or 330mm × 150mm (2x)
Max Unique Components	Only Powered Feeders: 50x components in 8mm or 12mm tape Only Strip Feeders (Reduces Max PCB Size): 27x components in 8mm tape Total (Reduces Max PCB Size): 77x unique components in 8mm tape 64.9% fully automatic feeders	Using Powered Feeders: 25x components in 8mm or 12mm tape Only Strip Feeders (Reduces Max PCB Size): 54x components in 8mm tape Total (Reduces Max PCB Size): 79x unique components in 8mm tape 31.6% fully automatic feeders
Machine Dimensions	30in wide, 28in deep, and 10.6in tall (765mm × 710mm × 270mm)
CPH	950 with vision, 1580 without
Component Compatibility	Minimum part size: 0402, Minimum lead pitch: 0.4mm Max part weight: 25g, Max part height: 20mm Down to BGA 0.8mm pitch Strip feeder support for tape widths 8mm, 12mm, 16mm, 24mm, 32mm, 44mm Powered feeder support for tape widths 8mm, 12mm
Power	Max consumption 145W, accepts AC 100V–240V, 50/60Hz
Requirements	One PC or Laptop running Windows / Mac OS / Ubuntu Linux 20.04 OpenPnP can handle 2× 1080p USB webcam feeds and 1× USB serial port simultaneously

PlaceStation semi-assembled machine packaging checklist

Confirm the following goods are in the Upper foam tray: *

Y-limit-striker (with attached hardware)
Rear-feeder-rail (with attached hardware)
Primary-staging-plate
Aux-staging-plate
Drag-chain
Front-feeder-rail (with attached hardware)
Power Cord
Aux-staging-plate-foot (with attached hardware)
24V6A Power Supply
Static-camera-foot
Electronics-cabinet

Confirm the following goods are in the Lower foam tray: *

Y-gantry-left
X-cable-chain-support
Front Leg Extensions
Back Leg Extensions
Getting Started Kit
X-gantry
Y-gantry-right
LumenPnP Tool Kit
Feeder Slot Cable Harness
Nozzle Rack
